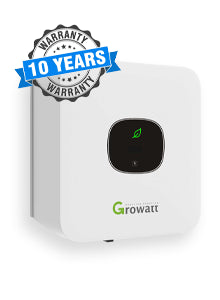

GROWATT 2500TL X Single MPPT
Growatt OUT OF STOCK

GROWATT 2500TL X Single MPPT

GROWATT-2500-TL-X
£270.83 ex VAT £325.00 inc VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Technical Specifications
Rated Power (Pmax)2,500 W
Module Efficiency97.6 %
MPPT Quantity1
Min MPPT Voltage65 V
Max MPPT Voltage550 V
Max Input Voltage550 V
Max DC Power3,500 W
Max AC Power (5 min)2,500 VA
Surge AC Power (1 sec)2,500 W
Max DC Current13 A
Max DC Inputs1
Integrated DC SwitchNo
Height254 mm
Width274 mm
Depth138 mm
Weight6.2 kg
ConnectorH4 / MC4
IP RatingIP65
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, 10 years optional
View Full Datasheet

GROWATT 2500TL X Single MPPT

Growatt · MIC TL-X

GROWATT 2500TL X Single MPPT

Growatt MIC TL-X — 6 kg, one tracker, arc-fault protection available — the compact single-string choice.

The Growatt MIC TL-X is a single-MPPT single-phase inverter for small arrays, and it is deliberately minimal: 274 × 254 × 138 mm, 6 kg, natural convection, IP65. There is no fan to fail and nothing to service.

Rated output
2,500 WSingle phase AC output
Maximum PV input
3,500 WArray size this inverter accepts
MPP trackers
1Independent maximum power point trackers
Peak efficiency
97.6 %Conversion efficiency at best
Maximum DC voltage
550 VString voltage ceiling
MPPT window
65 – 550 VWhere it tracks
Protection rating
IP65Indoor or outdoor mounting
Warranty
5 yearsStandard, 10 years optional
Overview

About the Growatt MIC TL-X

Its useful trick is the 50 V start-up voltage on the smaller models, which is very low. On a six-panel array facing anything other than due south, that low threshold is what gets the inverter generating in the first and last hours of daylight rather than sitting idle.

The models we stock are specified with arc-fault protection and an integrated DC isolator. AFCI detects the DC arcing that causes rooftop fires and shuts the inverter down — a feature that is optional across most of this class and is worth having on any roof-mounted DC installation.

For the installer

String design, certification and what is in the box

The details that decide whether this unit suits the job:

  • One MPP tracker, one string, 13 A input and 16 A Isc across the whole range.
  • The MIC 750 to MIC 2000 have a 500 V maximum and a 50 – 500 V MPPT window; the MIC 2500 and above have 550 V and a 65 – 550 V window.
  • A DC switch is fitted on the SKUs whose part code ends −AFP-DC; the SKUs ending −AFP are the non-DC version. AFCI is specified on every MIC TL-X SKU we stock.
  • AC/DC surge protection Type III / Type III.
  • Certified to G98, C10/C11, VDE-AR-N 4105, EN 50549, CEI 0-21 and AS 4777.
  • OLED + LED display with Wi-Fi and app; RS485 and USB standard, Wi-Fi/GPRS/RF/LAN optional.
Applications

Where this inverter earns its place

The MIC TL-X is specified most often for these jobs.

Small domestic roofsFour to eight panels on one plane.
Meter cupboards and tight plant spaces274 mm wide and 6 kg.
Arrays where arc-fault protection is specifiedAFCI-equipped SKUs, which is not universal at this price.
Low-light and non-south orientations50 V start-up on the smaller models.
Landlord and portfolio installsLow cost per property on repeat house types.
Outbuilding and garden-room arraysIP65, fanless, silent.
Battery and storage

Can I add a battery to this?

This is a grid-tied PV inverter. It converts solar DC into AC for the property and the grid, and it has no battery port. That is not a shortcoming — it is the right architecture for a system without storage, and it is why it costs what it does.

If storage is on the roadmap, you have two routes. Add an AC-coupled battery system alongside this inverter later, which works with any PV inverter and needs no change to what is already installed. Or choose a hybrid inverter now and pay for a battery port you will use in a year or two. We are happy to talk that trade-off through before you order.

Before you order

Things worth knowing about this listing

These notes come from us and from the manufacturer, and they are the ones that most often cause a problem after delivery:
  • To achieve the anti-reflux (export limitation) function on the TL-X and TL-XE range you must use the Growatt SPM-E meter. A CT clamp cannot do it. Contact us for details.
Technical specification

Growatt MIC2500TL-X technical data

This model
Recommended maximum PV power3,500 W
Maximum DC input voltage550 V
Start-up voltage80 V
MPPT voltage range65 – 550 V
Output and performance
Rated output power2,500 W
Maximum apparent output power2,500 VA
Maximum output current11.9 A
Maximum efficiency97.6 %
European weighted efficiency97.0 %
Weight6.2 kg
Common to the range
Number of MPP trackers1
Number of PV strings per MPP tracker1
Maximum input current per MPP tracker13 A
Maximum short circuit current per MPP tracker16 A
Nominal AC voltage (range)230 V (180 – 280 V)
AC grid frequency (range)50 / 60 Hz (45 – 55 / 55 – 65 Hz)
Adjustable power factor0.8 leading to 0.8 lagging
THDi<3 %
AC grid connection typeSingle phase
MPPT efficiency99.9 %
DC reverse polarity protectionYes
DC switchYes
AC/DC surge protectionType III / Type III
Insulation resistance monitoringYes
Ground fault monitoringYes
Anti-islanding protectionYes
Residual current monitoring unitYes
AFCI protectionOptional — fitted on the SKUs we stock
Dimensions (W / H / D)274 / 254 / 138 mm
Operating temperature range−25 °C to +60 °C
Nighttime power consumption<0.5 W
TopologyTransformerless
CoolingNatural convection
Protection degreeIP65
Relative humidity0 – 100 %
Altitude4,000 m
DC connectionH4 / MC4 (optional)
AC connectionConnector
DisplayOLED + LED / Wi-Fi + app
Compliance and warranty
Grid connection standardsCE, AS 4777, AS/NZS 3100, CEI 0-21, VDE-AR-N 4105, VDE 0126-1-1, UTE C 15-712-1, EN 50549, IEC 60068, IEC 61683, IEC 62116, IEC 61727, INMETRO, G98, C10/C11, UNE 217001, UNE 206007, PO 12.2
Warranty5 years standard, 10 years optional
Specification sourceData Sheet MIC-2500-TL-X EN (MIC 750 – 3300TL-X)
Frequently asked questions

Questions we get asked about this inverter

What does AFCI actually do?

It listens for the electrical signature of a DC arc — the kind caused by a loose MC4 connector or damaged cable — and shuts the inverter down before it can start a fire. DC arcs do not self-extinguish the way AC arcs do, which is why this matters on the DC side specifically.

Is the DC isolator included?

Yes, the DC switch is standard on this range and the SKUs we stock are the DC versions.

One tracker — is that enough?

For a single unshaded orientation, yes. For a split or shaded roof, look at the MIN TL-X range with two trackers.

Can I add a battery?

No. The MIC TL-X is grid-tied only. Growatt's MIN TL-XH range is the hybrid equivalent.

What warranty?

5 years standard with a 10-year option. See the warranty document attached to this listing.

ClearRay Solar

Documents, advice and trade pricing

Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our inverter range and our solar panels, or email our sales team at sales@clearraysolar.com if you would like us to check a string design or a compatibility question before you order.

High Efficiency 97.6 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
  • Protection Devices
Build a system
Documents & Certificates
Application Note TL-X Series Brochure Growatt UK Products Brochure CE Declaration of Conformity Growatt Data Sheet Growatt MIC 750-3300TL-X
