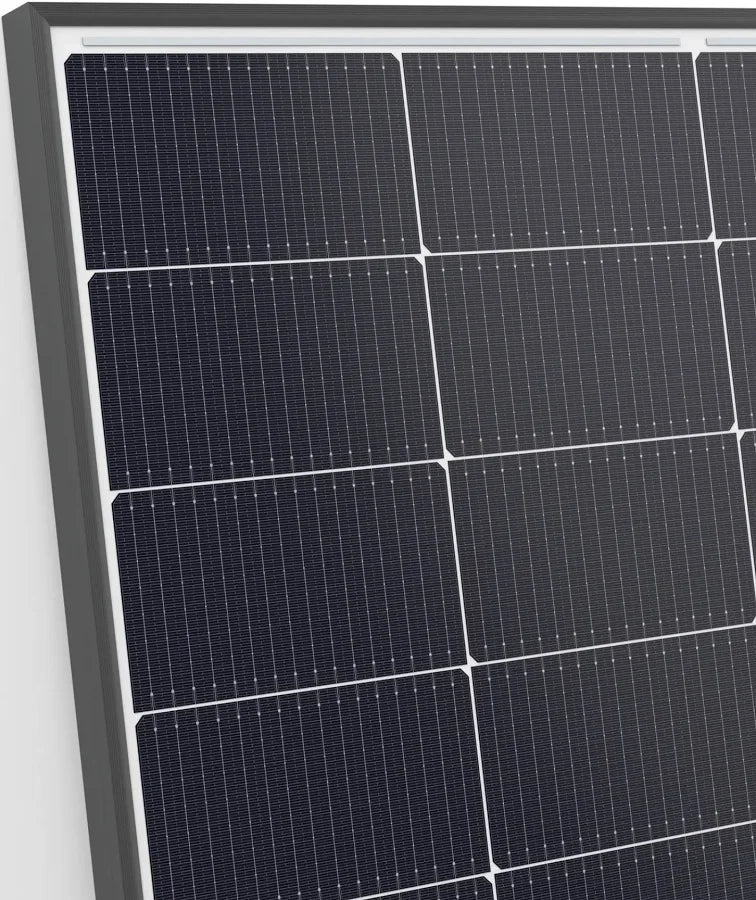

9 x JA Solar 540W N-Type TOPCon Traceable Low Carbon Double Glass Bifacial Black Frame Solar Panel
Fox H1 3.7kW Hybrid Inverter with EPS 1PH Gen 2
Fox ESS EP6 5.76kWh Battery with Heating Element
Battery Hazard Label Pack
26 x Solar Roof Tegalit Anchor for Plain tile (Screws are included)
6 x Clenergy SolarRoof Pro Solar PV Mounting Rail 4600mm
22 x Clenergy Universal Solar Panel Mid/End Clamp 30–46mm Black
4 x Clenergy SolarRoof Pro Solar PV Mounting Rail Connector
8 x Clenergy Pro Rail Cap Black.
Projoy DC Isolator 25A 2pole 1string
IMO Stag AC Isolator 3 Pole 20 Amp
Emlite 1-ph Bi-Directional generation meter 100A (1000 pulse/kWh) incl. Cover
Cableworld 4mm2 single-core DC cable 50m - Black
4mm2 single-core 50m - Red
18 x Staubli MC4 Female Connector - Single - 6 mm2-32.0014P0001-UR
18 x Staubli MC4 Male Connector - Single - 6 mm2-32.0015P0001-UR
PV on Roof and Hazard Labels Pack
9 x JA Solar 540W N-Type TOPCon Traceable Low Carbon Double Glass Bifacial Black Frame Solar Panel
ClearRay Solar 28 IN STOCK

Fox ESS 3.7kW Solar Kit with 5.8kWh Battery and 9 x 540W Solar Panels

£2,790.42 ex VAT

How many panels do you need?

Secure Checkout 14-Day Returns Tracked Delivery
Lower DegradationBetter long-term performance
High ReliabilityBuilt for all weather conditions
Greater Energy YieldMore power from your roof

ClearRay Solar Fox ESS 3.7kW Solar Kit with 5.8kWh Battery and 9 x 540W Solar Panels

A complete 4.86 kWp solar and 5.8 kWh battery kit for a single-phase home on a plain-tile roof, built around the Fox ESS Fox H1 3.7kW Hybrid Inverter with EPS 1PH Gen 2. Every part from the roof to the consumer unit is listed below, checked by our configurator.

4.86 kWpSolar array
3.7 kWHybrid inverter
5.8 kWhBattery storage
~4,600 kWhEstimated yearly yield
9Panels, one string
441 VString voltage, under 600 V
G98Notify the DNO after fitting
1 phaseSingle-phase supply

What's in the kit

Solar panels 4.86 kWp

Inverter 3.7 kW hybrid

Battery storage 5.8 kWh

Roof mounting Clenergy, plain-tile

Electrical and protection

  • The AC cable from the inverter to the AC isolator, generation meter and consumer unit (we don't sell general AC cable): 3-core, sized by your electrician for the ~16 A output and the run length.
  • Installation, scaffolding and the G98 notification

Design checks

  • String voltage 441 V on the coldest day, under the inverter's 600 V limit
  • 4.86 kWp on a 3.7 kW inverter, a 1.32 ratio, inside the tool's limits
  • Battery approved by the tool for this inverter
  • One mounting brand across the roof, as MCS 012 requires
  • Output within G98's 16 A per phase
  • Every run covered from the roof to the consumer unit
Different roof, more panels or a bigger battery?Open this kit in the configurator and change anything.
Customise this kit
MCS ApprovedEligible for UK grants and installations

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
Inverter: Data Sheet FOX H1/AC1 G2 3-6kW EN Inverter: G98 Certificate H1/AC1 Range - EN Inverter: Installation Manual H1/AC1 G2 Range EN Inverter: Installation Manual WiFi Stick User Manual - EN
