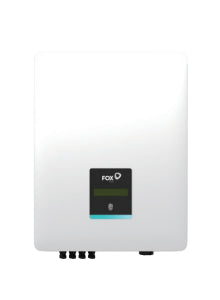

Fox ESS 20.0kW T Series 3PH Dual Tracker PV Inverter
- Fox ESS 20.0kW T Series 3PH Dual Tracker PV Inverter
- Part No: FE-T-20.0
- Inverters - Main Units
- Rating: 20,000W
- Phases: 3
- High Performance: Low start-up voltage, wide voltage range, 98.6% maxium effiency.
- Easy Installation:%A0Flexible configuration, plug and play set-up.
- IP65 Rated:%A0Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring:%A0Monitor your system remotely via smartphone app or web portal.
T20-G3
Dual-MPPT T Series range includes 6.0 - 25.0kW models. The T Series a 3-phase aimed at domestic and small-scale commercial installations.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard.%A0Please click here for registration page.%A0Please check the warranty document for more information.
Electrical
| Rated Power (Pmax) | 20,000 W |
|---|---|
| Module Efficiency | 98.6 % |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 140 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max DC Power | 30,000 W |
| Max AC Power (5 min) | 22,000 VA |
| Surge AC Power (1 sec) | 22,000 W |
| Max DC Current | 28 A |
| Max DC Inputs | 2 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 480 mm |
|---|---|
| Width | 370 mm |
| Depth | 183.5 mm |
| Weight | 21 kg |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years when the installation is registered with Fox ESS online |
|---|
- Data Sheet Fox Ess T series EN V2.3
- G100 certification Fox ESS T Series EN
- G99 Certificate Fox ESS T Series 20.0 EN
- Installation Manual FOX ESS T series EN V1.5
- Product Compatibility Fox Ess UK 2026
- User Manual FOX ESS T series EN V1.4
- Warranty Fox ESS Inverter V2.3
- White Paper Fox ESS 3PH Meter Schematic EN
- White Paper Why Fox?
