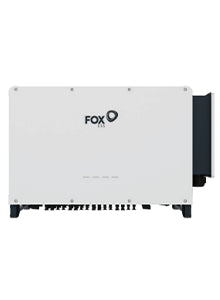

Out of stockFox ESS 100.0kW R Series 3PH 9x MPPT Grid-Tied Inverter (BTO)
£1,972.25
ex. VAT
- Secure Checkout
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Fox ESS 100.0kW R Series 3PH 9x MPPT Grid-Tied Inverter (BTO)
- Fox ESS 100.0kW R Series 3PH 9x MPPT Grid-Tied Inverter (BTO)
- Part No: FE-R-100.0
- Inverters - Main Units
- Rating: 100,000W
- Phases: 3
- PV String Current Monitoring
- Arc Fault Circuit Interrupter Function
- PID Recovery
- LED, Wi-Fi + APP
- IP66 and C5 Protection
- 13A / 16A Input Current, Compatible with Bifacial Module
R100
The R Series inverter range is aimed at 3-phase commercial installations, with inverter options from 75kW to 110kW.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
High Efficiency 98.6 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 100 kW |
|---|---|
| Module Efficiency | 98.6 % |
| MPPT Quantity | 9 |
| Min MPPT Voltage | 200 V |
| Max MPPT Voltage | 1,000 V |
| Max Input Voltage | 1,100 V |
| Max AC Power (5 min) | 110 kVA |
| Max DC Current | 26 A |
| Max DC Inputs | 2 |
Mechanical
| Height | 630 mm |
|---|---|
| Width | 975 mm |
| Depth | 360 mm |
| Weight | 90 kg |
| Connector | MC4 |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -30 °C to +60 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years when the installation is registered with Fox ESS online |
|---|
