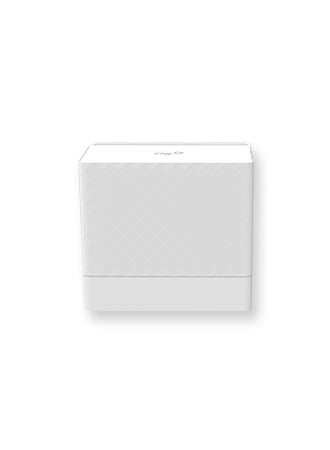

Fox ESS PQ1 Series 10kW Stackable All-In-One with Heating Function
- Fox ESS PQ1 Series 10kW Stackable All-In-One with Heating Function
- Part No: FE-PQ1-10.0
- Storage Systems - Hybrid Inverter
- All-in-one stackable energy storage system
- Single-phase hybrid inverter options from 3.7kW to 12kW
- Scalable LFP battery storage
- Up to 24kW PV input capacity
- Up to 4 MPPTs for enhanced design flexibility
- 200% PV oversizing capability
- Integrated 63A bypass for full-house backup
- <4ms automatic backup switchover
- Parallel operation of up to three systems
- IP66-rated for indoor or outdoor installation
- Remote monitoring via FoxCloud app and web portal
- Ready for AI energy management and VPP applications
Fox ESS Stackable AIO PQ Series (Single-Phase)
The Fox ESS Stackable AIO PQ Series is a next-generation all-in-one residential energy storage solution, combining a single-phase hybrid inverter with scalable LFP battery storage in a compact, modular design. Designed for flexibility and ease of installation, the system is ideal for homeowners looking to maximise solar self-consumption, enhance energy independence, and benefit from reliable backup power.
Key features include up to 12kW inverter capacity, support for up to 24kW of PV input, and up to four MPPTs with 20A per string, making it compatible with the latest high-power solar modules.
Click here for a video introduction to the PQ1 series by Fox Ess.
Compatible with 2-6 FE-HV-EQS-5000
Key Benefits
Electrical
| Rated Power (Pmax) | 10,000 W |
|---|---|
| Module Efficiency | 97.62 % |
| Battery Voltage | 80 - 500 V |
| MPPT Quantity | 4 |
| Min MPPT Voltage | 80 V |
| Max MPPT Voltage | 550 V |
| Max Input Voltage | 600 V |
| Max DC Power | 22,000 W |
| Max AC Power (5 min) | 11,000 VA |
| Max DC Current | 20 / 20 / 20 / 20 A |
| Max DC Inputs | 4 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 420 mm |
|---|---|
| Width | 570 mm |
| Depth | 380 mm |
| IP Rating | IP66 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C, derating at +45 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years when the installation is registered with Fox ESS online |
|---|
