8 In StockFox H3 Pro 25kW 3ph Hybrid Inverter
£2,224.37
ex. VAT
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

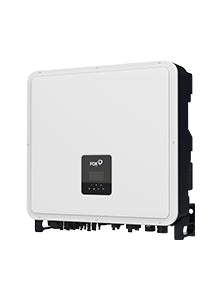

Fox H3 Pro 25kW 3ph Hybrid Inverter
- Fox ESS H3 Pro 25kW 3PH Hybrid Inverter
- Part No: FE-H3-PRO-25.0
- Storage Systems - Hybrid Inverter
- 2 Battery Inputs
- 3 MPPT trackers
- Full three-phase emergency power capability
- Two battery inputs for even easier connection of high-voltage batteries
- Modern and functional design
- Remote monitoring
- 10-year warranty (5 years as standard and extendable to 10 years through registration)
- Smart meter and WiFi dongle are included in the scope of delivery
Fox ESS H3 Pro 25.0 three-phase hybrid inverter
This Inverter can have a MAXIMUM of 2 stacks with 7 modules per stack (1x Master + 6x Slaves), for a TOTAL of 2x Master + 12x Slaves.
FE-LAN-STICK not compatible with this range, please contact Fox for solution - service.uk@fox-ess.com (02475 100078)
High Efficiency 97.80 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 25,000 VA |
|---|---|
| Module Efficiency | 97.80 % |
| Battery Voltage | 150 - 800 V |
| MPPT Quantity | 3 |
| Min MPPT Voltage | 150 V |
| Max MPPT Voltage | 850 V |
| Max Input Voltage | 1,000 V |
| Max DC Power | 37,500 W |
| Max AC Power (5 min) | 27,500 VA |
| Max DC Current | 32 A |
| Max DC Inputs | 6 |
| Integrated DC Switch | Optional |
Mechanical
| Height | 560 mm |
|---|---|
| Width | 600 mm |
| Depth | 225 mm |
| Weight | 52.5 kg |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C, derating at +45 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years when the installation is registered with Fox ESS online |
|---|
- Data Sheet Fox Ess P3 Pro NL (Dutch)
- Data Sheet Fox Ess P3 Pro/H3 Pro PL (Polish)
- Data Sheet FOX H3 Pro Series - DE (German)
- Data Sheet FOX H3 Pro Series - EN
- Data Sheet FOX H3 Pro Series - NL
- Data Sheet FOX H3 Pro Series - PL
- G100 certification Fox ESS H3 Pro Series EN
- Installation Manual FOX H3 Pro Series Quick Guide - EN
- Product Compatibility Fox Ess UK 2026
- User Manual Fox ESS H3 Pro Series v1.0 EN
- User Manual FOX H3 Pro Series - EN
- VDE-AR-N 4105:2018 FOX H3 Pro Series NA-Schutz - DE/EN
- Warranty Fox ESS Inverter V2.3
- White Paper Factsheet Fox H3 Pro EN
- White Paper Fox ESS 3PH Meter Schematic EN
- White Paper Why Fox?
