3 In StockFox H3 Smart 6.0KW 3ph Hybrid Inverter
£1,164.71
ex. VAT
- Secure Checkout
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

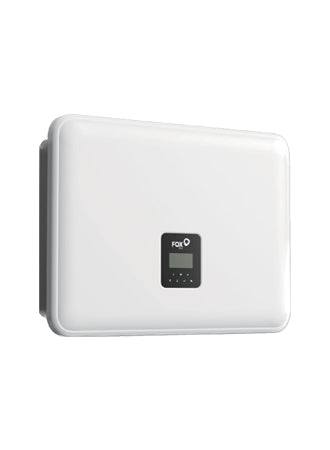

Fox H3 Smart 6.0KW 3ph Hybrid Inverter
- FOX ESS H3 Smart 6.0KW 3PH Hybrid/AC Inverter
- Part No: FE-H3-6.0-SMART
- Storage Systems - Hybrid Inverter
- Easy installation - Plug & Play, built-in fuse protection.
- High voltage - Maximum round-trip efficiency.
- Maximum flexibility - 3 battery types to choose from, True 3-phase backup power.
- IP65 rated - Suitable for outdoor installation.
- Monitoring - Monitor remotely via app or web portal.
- integrated Wi-Fi
Fox ESS H3 Smart Series - 6.0kW
H3-6.0-Smart
Includes meter
High Efficiency 97.70 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 6,000 W |
|---|---|
| Module Efficiency | 97.70 % |
| Battery Voltage | 100 - 800 V |
| MPPT Quantity | 3 |
| Min MPPT Voltage | 120 V |
| Max MPPT Voltage | 950 V |
| Max Input Voltage | 1,000 V |
| Max DC Power | 13,200 W |
| Max AC Power (5 min) | 6,600 VA |
| Max DC Current | 20 / 20 / 20 A |
| Max DC Inputs | 3 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 450 mm |
|---|---|
| Width | 600 mm |
| Depth | 226 mm |
| Weight | 34 kg |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C, derating at +45 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years when the installation is registered with Fox ESS online |
|---|
- OVE-R25 Fox Ess H3-Smart/H3-M/P3-SH/P3-SA/AC3 - EN
- CE Declaration of Conformity EU Fox Ess H3-M/H3-Smart - DE (German)
- Data Sheet Fox ESS H3 Smart DE (German)
- Data Sheet Fox ESS H3 Smart EN
- Data Sheet Fox ESS H3 Smart NL (Dutch)
- EN50549 Fox Ess H3 Smart - P3 Pro EN
- EN50549 Fox Ess H3-Smart/P3/AC3 - EN
- Installation Manual Fox ESS H3 Smart
- Product Compatibility Fox Ess UK 2026
- User Manual Fox Ess H3/AC3/P3 EN
- User Manual Manual Fox ESS H3 Smart DE (German)
- Warranty Fox ESS Inverter V2.3
