35 In StockFox ESS 3.0kW F Series (G3) 1PH Dual Tracker PV Inverter
£325.21
ex. VAT
- Secure Checkout
- Next Working Day(Usually)
- Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

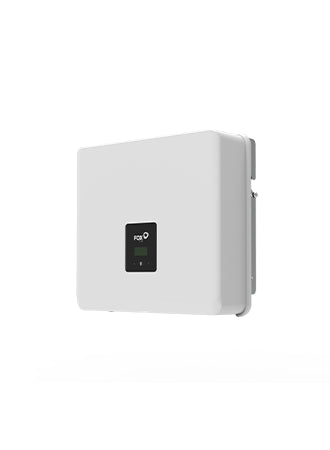

Fox ESS 3.0kW F Series (G3) 1PH Dual Tracker PV Inverter
- Fox ESS 3.0kW F Series (G3) 1PH Dual Tracker PV Inverter
- Part No: FE-F3000-G3
- Inverters - Main Units
- Rating: 3,000W
- Phases: 1
- High Performance: Low start-up voltage, wide voltage range, 97.4% maxium effiency.
- Easy Installation: Flexible configuration, plug and play set-up.
- IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring: Monitor your system remotely via smartphone app or web portal.
FOX ESS - PV Inverter - F Series - 3kW
F3000 (G3)
Dual-MPPT F Series range includes 3.0 - 6.0kW models. The F Series is IP65 rated and battery ready for easy upgrade when paired with a Fox ESS charge controller.
High Efficiency 97.60 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Electrical
| Rated Power (Pmax) | 3,000 W |
|---|---|
| Module Efficiency | 97.60 % |
| MPPT Quantity | 2 |
| Min MPPT Voltage | 60 V |
| Max MPPT Voltage | 550 V |
| Max Input Voltage | 600 V |
| Max DC Power | 6,000 W |
| Max AC Power (5 min) | 3,300 VA |
| Surge AC Power (1 sec) | 3,300 W |
| Max DC Current | 40 A |
| Max DC Inputs | 1 |
| Integrated DC Switch | Yes |
Mechanical
| Height | 335 mm |
|---|---|
| Width | 358 mm |
| Depth | 155 mm |
| Weight | <=9.5 kg |
| IP Rating | IP65 |
Operating conditions
| Operating Temperature | -25 °C to +60 °C, derating at +45 °C |
|---|
Warranty
| Warranty | 5 years standard, 10 years when the installation is registered with Fox ESS online |
|---|
- CE Declaration of Conformity Fox ESS F Series (EMC)
- CE Declaration of Conformity Fox ESS F Series (EMC)
- CE Declaration of Conformity Fox ESS F Series (LVD)
- CE Declaration of Conformity Fox ESS F Series (LVD)
- Data Sheet Fox ESS F Series G3 EN
- Product Compatibility Fox Ess UK 2026
- User Manual Fox ESS F Series G3 EN
- Warranty Fox ESS Inverter V2.3
