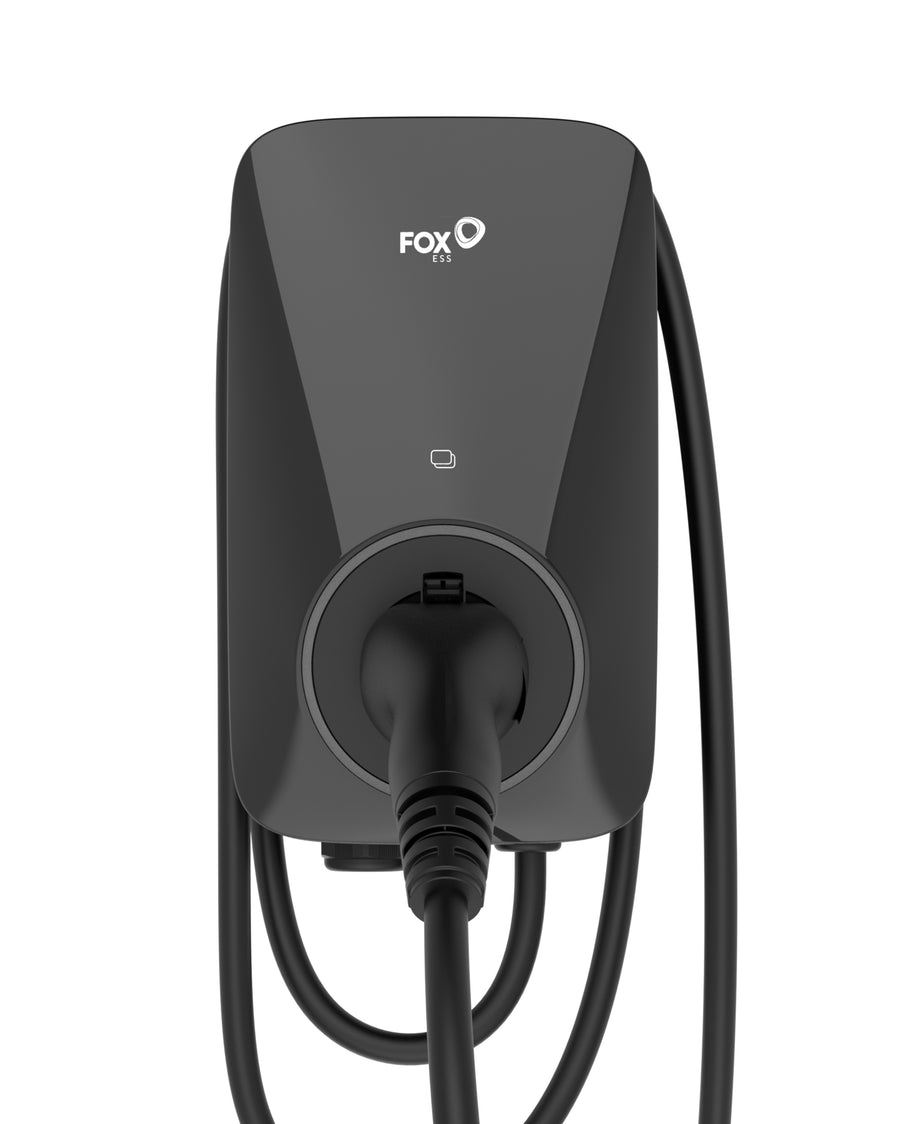

Fox 7kW A Series Black EV Charger 1PH with 5m Type 2 Cable
Fox ESS Fox 7kW A Series Black EV Charger 1PH with 5m Type 2 Cable
The Fox ESS A Series is a 7.3 kW electric vehicle charge point, supplied with type 2 tethered, 6 m cable.
Specification
| Rated power | 7.3 kW |
| Supply | 230 V ±20% (L/N/PE) |
| Phases | Single phase |
| Charging current | 32 A |
| Connector | Type 2 tethered, 6 m cable |
| Colour | Black |
| Weight | 6.3 kg |
| Connector type | IEC 62196 Type 2 cable |
| Charging cable length | 6 m |
| Start mode | Plug and charge, RFID card, or app |
| Connectivity | Bluetooth, WiFi 2.4 GHz, Ethernet RJ45, 4G LTE optional |
| OCPP | OCPP 1.6 JSON or OCPP 2.0.1 |
| RFID reader | Mifare ISO/IEC 14443 A |
| Residual current detection | 30 mA AC plus 6 mA DC |
| Protection | Over/under voltage, overcurrent, leakage, ground, surge, over temperature, tamper, PEN |
| Environmental protection | Salt mist resistant, UV resistant treatment |
| IP protection rating | Body IP65, socket IP55 |
| IK protection rating | IK08 |
| Operating temperature | −30 °C to +50 °C |
| Dimensions (W × H × D) | 190 × 320 × 130 mm |
| Certification | CE / CB / UKCA / RCM, EN/IEC 61851-1:2019 |
| Warranty | 3 years (36 months from installation, no more than 40 months from manufacture); registration required within 12 months |
Installing an EV charge point in the UK
A home charge point is a fixed electrical installation and must be installed by a competent person to BS 7671. Two questions decide most of the job. First, does the unit have integrated PEN fault protection? On a TN-C-S (PME) supply that is what removes the need for an earth rod and the groundworks that come with it. Second, can the existing supply carry another 32 A? That is what load balancing exists to manage — the charger backs off when the house is drawing heavily, instead of taking out the main fuse.
Every charge point sold in Great Britain must also meet the Electric Vehicles (Smart Charge Points) Regulations 2021, which require default off-peak charging hours, a randomised start delay, and measures against unauthorised access.
Additional suggested items
Usually ordered at the same time:
- 6mm2 Five Core Cat5e EV Ultra Cable with SWA Sleeve - 10m — power and Cat5e data in one armoured cable, for the run out to the charger
- 6mm2 Five Core Cat5e EV Ultra Cable 10m — the unarmoured version of the same cable, for runs that stay inside
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev charging range, or contact our sales team at sales@clearraysolar.com for trade pricing.
