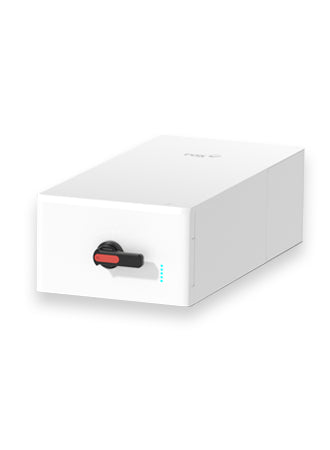

Fox ESS BMS Box for CQ16
Fox ESS BMS Box for CQ16
Fox ESS BMS Box for CQ16
Fox ESS CQ16 base and BMS box — Four modules and a BMS Box at the bottom, forty-five and three at the top — H3 Plus only.
The CQ16 is the largest modular storage Fox ESS make, developed specifically for the H3 Plus series, and it scales further than anything else in their range.
About the Fox ESS CQ16 base and BMS box
The floor is four modules with one BMS Box, at 64.28 kWh. The ceiling is forty-five modules with three BMS Boxes, at 723.15 kWh. Between those, the constraint is fifteen modules in series per stack.
Both parts on this page are structural rather than optional. The base is what the stack stands on; the BMS Box is what manages the modules and talks to the inverter.
It is an indoor product: IP20, floor mounted, with intelligent air cooling control and a 90 % depth of discharge.
The compatibility line is absolute. CQ16 works with the H3 Plus series only and is not compatible with other Fox series.
What does this fit?
This is the base and management box a CQ16 stack is built on.
CQ16 is compatible with the H3 Plus series only. The smallest system is four CQ16 modules with one BMS Box at 64.28 kWh; the largest is forty-five modules with three BMS Boxes at 723.15 kWh, with a maximum of fifteen modules in series per stack.
The products it is ordered with:
What the job needs
The details that decide whether this suits the system:
- CQ16 is compatible with the H3 Plus series only.
- Smallest system: 4 × CQ16 with 1 BMS Box, 64.28 kWh.
- Largest system: 45 × CQ16 with 3 BMS Boxes, 723.15 kWh.
- Maximum 15 modules in series per stack.
- 90 % depth of discharge, IP20, floor mounted, intelligent air cooling control — this is an indoor product.
- Register the installation with Fox ESS online to activate the 10-year product warranty. Without registration it is 5 years as standard.
Where this earns its place
These are the parts a CQ16 stack is assembled on.
Things worth knowing about this listing
- CQ16 is compatible with the H3 Plus series only and is not compatible with other series. The smallest system is 4 × CQ16 with 1 BMS Box (64.28 kWh); the largest is 45 × CQ16 with 3 BMS Boxes (723.15 kWh).
Fox ESS CQ16 BMS Box technical data
Questions we get asked about this inverter
Which inverter does CQ16 work with?
The H3 Plus series only. It is not compatible with other Fox series.
What is the smallest system?
Four CQ16 modules with one BMS Box — 64.28 kWh.
How large can it get?
Forty-five modules with three BMS Boxes, 723.15 kWh, with a maximum of fifteen modules in series per stack.
Can it go outside?
No. It is IP20 and floor mounted, with intelligent air cooling — an indoor battery.
