OUT OF STOCK

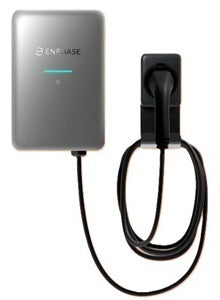

Enphase IQ EV Charger 2 7.4kW with a 7.5m Type 2 Tethered Charging Cable
Enphase IQ EV Charger 2 7.4kW with a 7.5m Type 2 Tethered Charging Cable
The Enphase IQ EV Charger 2 is a 7.4 kW electric vehicle charge point, supplied with type 2 tethered, 7.5 m cable.
Specification
| Rated power | 7.4 kW |
| Phases | Single phase |
| Charging current | 32 A |
| Connector | Type 2 tethered, 7.5 m cable |
| Weight | 11 kg |
| Model | IQ-EVSE-UK-1032-0105-1300 |
| Nominal voltage | 230 V |
| Nominal frequency | 50 Hz |
| Maximum charging power | 7.4 kW, single phase |
| Rated output current | 32 A |
| Cable gland | M25 gland, 11 to 17.9 mm |
| Dimensions (L × W × D) | 370 × 250 × 118 mm |
| Enclosure rating | IP55 / IK10 |
| Service cable entry | Bottom and rear |
| Operating temperature | −40 °C to +55 °C |
| Altitude | < 2,500 m |
| Connectivity | WiFi 2.4/5 GHz 802.11ax, Bluetooth 5.3, Ethernet, RS-485, CAN |
| ISO 15118 | Hardware ready |
| OCPP | OCPP 2.0.1 and APIs |
| Metering accuracy | ±1%, Class B, MID certified |
| Safety features | Overvoltage protection (253 V), RDC-DD ±6 mA, relay weld detection, overcurrent detection, PEN fault detection |
| Built-in sensors | Ambient light, temperature, humidity and tilt |
| Access control | RFID / NFC via the Enphase app |
| Certification | CE, UKCA, MID (EN 50470-1/-3), EV Ready 2.0, UK Smart Charging, IEC/EN 61851-1 |
| Warranty | 5 years |
Installing an EV charge point in the UK
A home charge point is a fixed electrical installation and must be installed by a competent person to BS 7671. Two questions decide most of the job. First, does the unit have integrated PEN fault protection? On a TN-C-S (PME) supply that is what removes the need for an earth rod and the groundworks that come with it. Second, can the existing supply carry another 32 A? That is what load balancing exists to manage — the charger backs off when the house is drawing heavily, instead of taking out the main fuse.
Every charge point sold in Great Britain must also meet the Electric Vehicles (Smart Charge Points) Regulations 2021, which require default off-peak charging hours, a randomised start delay, and measures against unauthorised access.
Additional suggested items
Usually ordered at the same time:
- 6mm2 Five Core Cat5e EV Ultra Cable with SWA Sleeve - 10m — power and Cat5e data in one armoured cable, for the run out to the charger
- 6mm2 Five Core Cat5e EV Ultra Cable 10m — the unarmoured version of the same cable, for runs that stay inside
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev charging range, or contact our sales team at sales@clearraysolar.com for trade pricing.
