Multipole Surge Arrester - Type 2 600V DC (950531)
£103.36
ex VAT
£124.03
inc VAT
Secure Checkout
14-Day Returns
Tracked Delivery
UK StockDispatched from our own warehouse
Trade PricingVolume discounts for installers
Expert SupportSystem design help on request
DEHN Multipole Surge Arrester - Type 2 600V DC (950531)
- Multipole Surge Arrester - Type 2 600V DC (950531)
- Part No: DG-YPV-SCI-600
- Protection - DC Surge Protection
This multipole surge arrester comes with inbuilt three-step DC switching device.
The 3 DIN module rail mounted type 2 surge device is for the protection of 600V DC inputs of invertors.
It also has the patented SCI function for safe electrical isolation and preventing fire due to DC arcs.
This device meets prEN 50539-11.
It needs to be installed near to the invertor inputs or in combiner boxes.
It can only be used when the separation distance from a fitted LPS is met.
Keywords: DGYPVSCI600, DEHN, DC Surge Protection
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
- Protection Devices
Documents & Certificates
CE Declaration of Conformity
Data Sheet SCI 600 data sheet
Installation Manual DEHN SCI installation

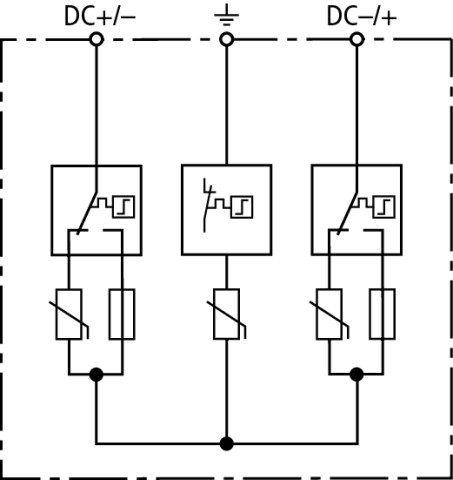

Technical Data Circuit diagram
Technical Data Dehn Protects Photovoltaic Systems
Technical Data Dehn Surge and Fire Protection
Technical Data Dehn Surge Protection for Commercial PV Systems

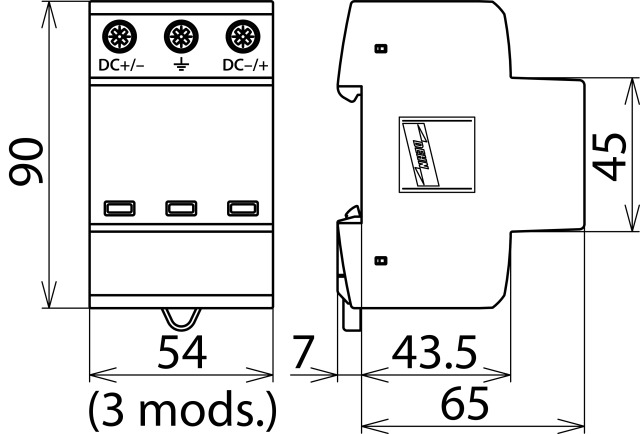

Technical Data Technical drawing
