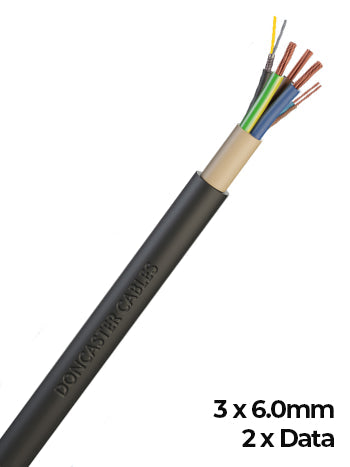

Doncaster Cables Powerwall Connect - AIO Cable Solution PW3 - 10m - 3 x 6.0mm - 2 x DATA
This is an all-in-one Tesla Powerwall connection cable: 3 × 6 mm² power cores plus two data cables and a 12 V supply, unarmoured, supplied as a 10 m length.
This cable carries the power conductors, the 12 V supply and the data cable a Powerwall needs in a single run, instead of three cables pulled alongside each other. It is designed and tested to Tesla's own guidelines.
Specification
| Length | 10 m |
| Conductors | 3 × 6 mm² |
| Nominal stranding | 7/1.04 mm |
| Steel wire armour | None |
| Nominal bedding diameter | 15.2 mm |
| Approximate overall diameter | 18.6 mm |
| Approximate weight | 530 kg/km |
| Power conductors | Plain annealed copper, Class 2 stranded to BS EN 60228 |
| Insulation | Thermosetting XLPE Type GP8 to BS 7655-1.3 |
| 12 V supply conductor | Plain annealed copper, Class 1 solid to BS EN 60228 |
| Data cable screen | High coverage tinned copper Super Screen, tinned copper drain wire |
| Bedding and outer jacket | CarbonTek®, impact and abrasion resistant, UV stable |
| Minimum operating temperature | −15 °C |
| Maximum operating temperature | 90 °C |
| Current ratings | Refer to BS 7671 table 4E2A (unarmoured) or 4E4A (armoured) |
| Manufactured in | United Kingdom |
Also available
The same cable in:
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev cable range, or contact our sales team at sales@clearraysolar.com for trade pricing.
