6U Wall Mount Patch Panel Bracket 19 in Steel - Vertical Mounting Bracket
Startech 6U Wall Mount Patch Panel Bracket 19 in Steel - Vertical Mounting Bracket
6U Wall Mount Patch Panel Bracket 19 in Steel - Vertical Mounting Bracket

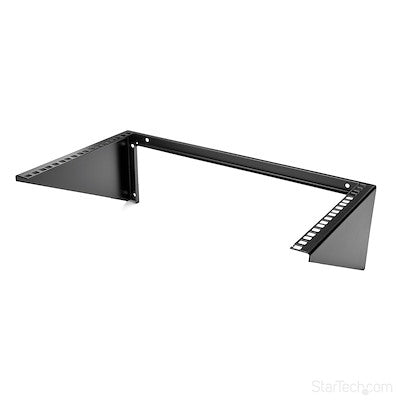

Startech 19-inch vertical wall mount bracket — 19-inch, vertical, flush to the wall — with the fixings set at 16 inches to catch the studs.
Not every battery installation has floor space. A vertical wall bracket takes the rack format off the floor and sets it flush against the wall, which on a small install is the difference between a tidy job and no job at all.
About the Startech 19-inch vertical wall mount bracket
These are StarTech steel brackets built to the EIA-310 19-inch rack standard, about 504 mm across, and they mount vertically against the wall or horizontally under a bench. Each arrives with its M5 cage nuts, M5 screws and wood screws.
The fixing detail is the one that matters when a battery is going on them. StarTech set the mounting holes exactly 16 inches apart so they land on standard construction framework — which is where the fixings need to be for anything heavy, rather than in plasterboard.
StarTech's datasheets are written for network equipment and quote no load rating. Judge the fixing on site against the weight of the battery going on it, and where more than one battery is planned, consider floor mounting instead.
What does this fit?
This is a steel 19-inch wall bracket that carries rack-mount equipment flush to the wall.
These are EIA-310 19-inch vertical wall-mount brackets in steel. We list them for wall-mounting rack-format Pylontech batteries; StarTech's own datasheets describe them as equipment and patch-panel brackets and quote no load rating, so the fixing has to be judged on site against the weight being hung.
The products it is ordered with:
What the job needs
The details that decide whether this suits the system:
- EIA-310 19-inch rack standard, steel, black.
- Mounting holes are set at 16 inches apart, matching standard construction framework. Fix into structure, not into plasterboard.
- The 2U bracket is 504 × 151 × 105 mm and 749 g; the 3U is 505 × 155 × 150 mm and 0.9 kg; the 4U is 504 × 151 × 193 mm and 1.1 kg.
- Supplied with M5 cage nuts, M5 screws and wood screws.
- StarTech quote no load rating on these brackets. Where more than one battery is planned, floor-mounted brackets are the safer choice.
- Can also be mounted horizontally under a desk or bench.
- StarTech back them with a lifetime warranty.
Where this earns its place
The bracket is chosen by how many rack units have to hang on the wall.
Things worth knowing about this listing
- StarTech quote no load rating for these brackets — their own datasheets describe them as equipment and patch-panel brackets. The mounting holes are set 16 inches apart to land on standard construction framework, and the fixing must be judged on site against the weight being hung.
Startech 6U vertical bracket technical data
Questions we get asked about this inverter
What load will it take?
StarTech do not quote a load rating on these brackets. Judge the fixing on site against the weight being hung, and fix into structural framework rather than plasterboard.
Where do the fixings go?
The mounting holes are set exactly 16 inches apart to match standard construction framework.
What is in the box?
The bracket, M5 cage nuts, M5 screws, wood screws and the instructions.
Can it be mounted horizontally?
Yes — under a desk or bench, which makes the equipment easier to reach.
Should I wall mount two batteries?
Where more than one battery is planned, floor-mounted brackets are the safer choice.
