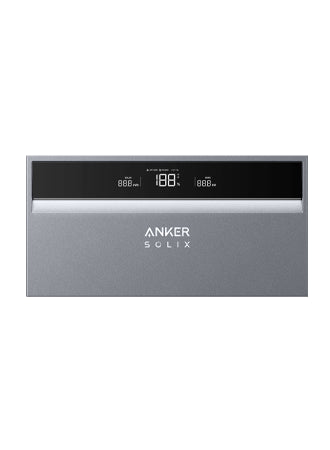

Anker Solix X1-H3.68K-S Power Module
Anker Solix X1-H3.68K-S Power Module
Anker Solix X1-H3.68K-S Power Module
Anker SOLIX X1 Power Module, single phase — A heated, C5-rated stack 150 mm deep, with almost everything you need already in the carton.
A hybrid inverter does three jobs a string inverter cannot. It converts solar DC to AC; it charges and discharges a battery on the DC side, which avoids the double conversion an AC-coupled battery pays for; and when the grid fails it islands the house and keeps a backup circuit alive from the battery.
About the Anker SOLIX X1 Power Module, single phase
The X1 is a stack rather than a wall box. The power module sits on top of one to six 5 kWh X1-B5-H battery modules on a shared base plate, 150 mm deep, behind covers that make the whole column look like one appliance. It is IP66 and C5 rated for corrosion, and the battery modules are heated, so the system keeps working down to −20 °C rather than refusing to charge on a frosty morning.
What is in the box is the other reason installers pick it: a power sensor, the base plate, the side covers, both accessory kits and a Wi-Fi dongle all arrive with the power module, so the quote is the module, the batteries and the labour rather than a page of small parts.
Which battery does this inverter take?
This inverter takes Anker SOLIX X1-B5-H, LFP.
This rule applies to the Anker SOLIX X1 power modules, single and three phase.
5 kWh per module, 5 to 30 kWh per system (1 to 6 modules). Single phase charge window 390 – 550 Vdc and discharge 370 – 500 Vdc; three phase 350 – 450 Vdc. 3 kW and 7.6 A maximum per module.
What we stock that fits this inverter:
String design, battery limits and what is in the box
The details that decide whether this unit suits the job:
- Battery is the X1-B5-H only: 5 kWh a module, one to six modules, 5 to 30 kWh. Charge window 390 – 550 Vdc and discharge 370 – 500 Vdc, 3 kW and 7.6 A per module.
- Because each module is limited to 3 kW, a single-battery system cannot deliver the inverter's full output from storage. Size the stack for the power you need, not only for the energy.
- Two MPP trackers, one string each, 16 A per tracker and 20 A Isc. 600 V maximum, 75 V start-up, 80 – 550 V MPPT window.
- Backup switches in under 10 ms with a 10 kVA peak for 10 seconds on the 5 kW and 6 kW (7.2 kVA on the 3.68 kW).
- Up to three power modules in parallel.
- Each module ships with a ground mount base. Wall mounting needs the wall bracket, and a stack of four or more batteries must be floor mounted rather than wall mounted.
- Anker do not support the X1 with a diesel generator anywhere in Europe.
- 19 kg, 670 × 335 × 150 mm, IP66, under 30 dB, −25 °C to +60 °C with derating above +45 °C.
Where this hybrid earns its place
The X1 Power Module, single phase is specified most often for these jobs.
Things worth knowing about this listing
- In the box: a power sensor, the base plate, side covers for the battery and power modules, a power module accessory kit, a battery module accessory kit and a Wi-Fi dongle. A ground mount base is included; wall mounting needs the wall bracket.
- The Anker SOLIX X1 range covers 3.6 kW, 5 kW and 6 kW hybrid inverters, all of which work with the Anker 5 kWh battery module. Single-phase systems scale from 5 kWh to 90 kWh.
- This model is certified for installation in Germany, Belgium and the Netherlands only. Ask us before ordering it for a UK installation.
- A stack of four or more battery modules must be floor mounted rather than wall mounted.
- Anker do not support the X1 with a diesel generator anywhere in Europe.
Anker SOLIX X1-H3.68K-S technical data
Ordered with this inverter more often than anything else
A hybrid is the middle of a system, not the whole of it. These are the parts our customers add most often:
Questions we get asked about this inverter
What comes in the box?
A power sensor, a base plate, side covers for the battery and power modules, a power module accessory kit, a battery module accessory kit and a Wi-Fi dongle. You add the battery modules and, if you are wall mounting, the wall bracket.
How much of the inverter's power can the battery actually deliver?
Each 5 kWh module is limited to 3 kW, so one module cannot supply a 5 kW or 6 kW inverter at full output. Two or more modules can.
Can I use it with a generator?
Not in Europe. Anker state that the combination of an X1 and a diesel generator is not supported here.
Wall or floor?
Either, up to three battery modules — a ground mount base is included and a wall bracket is available separately. From four modules the stack must be floor mounted.
Which battery?
The Anker X1-B5-H, and only that. It is a closed system: no other manufacturer's battery can be fitted.
Documents, advice and trade pricing
Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our hybrid inverter range, our batteries and our solar panels, or email sales@clearraysolar.com if you would like us to check a battery pairing or a string design before you order.
Three figures govern it, all in the Technical Specifications: the MPPT voltage range, the maximum input voltage and the maximum DC power. Tell us which panel you're pairing it with and we'll confirm the string layout.
G98 covers installations up to 3.68kW per phase and is notified to your DNO after commissioning. Anything larger needs G99 approval agreed beforehand. We can flag which one your design falls under.
A hybrid inverter takes a DC-coupled battery directly. A standard string inverter needs an AC-coupled battery alongside it. The Technical Specifications show which type this unit is.
Yes, up to the maximum DC power figure in the specifications. Modest oversizing is normal practice - it lifts output in winter and at either end of the day, at the cost of brief clipping at midday peak.
An MPPT tracks the optimum operating point for a string of panels. You want one per roof orientation or pitch, because panels facing different directions on a single tracker drag each other down.
The standard manufacturer warranty is listed under the Warranty tab. Extended cover is available on most brands - see Warranty Extensions.
