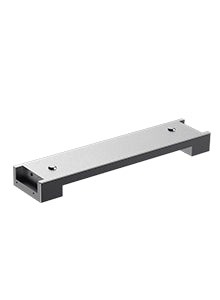

Anker Solix X1 Base Plate
Anker Solix X1 Base Plate
Anker Solix X1 Base Plate
Anker SOLIX X1 mounting and enclosure parts — Three batteries a stack — past that it is two stacks, 300 to 600 mm apart.
The Anker SOLIX X1 is an all-in-one storage system built around a 15 cm wide IP66 enclosure with a C5 anti-corrosion rating, internal heating for operation down to −20 °C and 100 % PV over-sizing.
About the Anker SOLIX X1 mounting and enclosure parts
How that goes together on a wall is governed by one number: three. A wall bracket carries up to three batteries and an inverter, and that is the ceiling for a single stack.
Past three batteries the installation becomes two stacks side by side, spaced 300 to 600 mm apart, and the second row needs its own accessory kit to connect it back to the first.
The base plate is for a floor-standing arrangement rather than a wall, and the top cover finishes the stack.
Getting this decided at survey matters, because the difference between one stack and two is wall width, not just parts.
What does this fit?
This is the bracket, plate, cover and second-row kit an X1 stack is built with.
The wall bracket carries up to three batteries plus an inverter. Beyond three batteries the stack is split into two side by side, 300 to 600 mm apart, and the second row needs its own accessory kit.
The products it is ordered with:
What the job needs
The details that decide whether this suits the system:
- The wall bracket is needed for wall mounting and carries up to three batteries plus an inverter.
- Where more than three batteries are connected, place them in two stacks side by side, 300 to 600 mm apart.
- A second row of battery modules needs the second-row accessory kit.
- The base plate is the floor-standing alternative to the wall bracket.
- The top cover finishes the stack.
- Decide the layout at survey. Two stacks need considerably more wall than one.
Where this earns its place
These are the parts an X1 stack is assembled with.
Anker SOLIX X1 Base Plate technical data
Questions we get asked about this inverter
How many batteries will one wall bracket take?
Up to three, plus an inverter.
What if I need more than three?
Place them in two stacks side by side, 300 to 600 mm apart, and use the second-row accessory kit.
What is the base plate for?
A floor-standing installation rather than a wall-mounted one.
Do I need the top cover?
It finishes the stack. Order one per stack.
Documents, advice and trade pricing
Every datasheet, certificate, installation manual and warranty document we hold for this product is in the Documents tab below. See the rest of our storage range, our hybrid inverters and our batteries, or email sales@clearraysolar.com if you would like us to check a pairing before you order.
