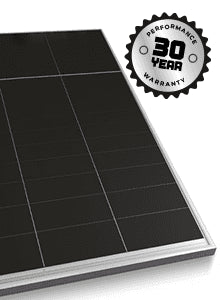

AIKO 660W Stellar 3N+ N-Type ABC 72 Cell Silver Frame Dual Glass Solar Panel - 01C Connector

The AIKO Stellar 3N+ 660 W is an N-Type ABC (All Back Contact) solar panel. AIKO's All-Back-Contact cell design moves every busbar to the rear of the cell, leaving the entire front face free to collect light. It delivers 24.4 % module efficiency from a 2,382 × 1,134 mm frame.

About the AIKO Stellar 3N+ range

The Stellar range is AIKO's utility and commercial line: large-format, silver-framed dual-glass modules aimed at getting the most kilowatt-peak onto a given roof area and cutting the balance-of-system cost per watt that comes with it.

At 2,382 mm tall and 2.70 m² this is a commercial-format module, intended for warehouse and barn roofs, ground mounts and solar farms where the extra length is not a constraint. It is usually too long for a typical domestic roof plane.

Why installers specify this panel

• −0.26 %/°C power temperature coefficient — the array keeps more of its rated output on hot days, when a UK roof can sit far above the 25 °C the nameplate figure is measured at.
• Cell-level shade optimisation — the ABC cell structure recovers output around chimneys, vents and pole shadows without adding a separate optimiser to every module.
• Glass-glass construction — dual glass, 2.0 + 2.0 mm coated semi-tempered front and back instead of a polymer backsheet, for better resistance to moisture ingress and micro-cracking.
• Long-dated warranty — 15-year product warranty and 30-year linear performance warranty; first-year degradation ≤1 %, ≤0.35 % per year from year 2 to 30.
• 0 to +3 % power tolerance — every module is sorted to meet or beat its 660 W nameplate rating.

Electrical characteristics (STC)

STC: AM1.5, 1,000 W/m², 25 °C cell temperature.

Mechanical specification

Temperature and load ratings

Warranty and certification

15-year product warranty and 30-year linear performance warranty; first-year degradation ≤1 %, ≤0.35 % per year from year 2 to 30.

Array sizing

Each panel covers 2.70 m². A 4 kWp array needs 6 of them (3.96 kWp over about 16 m²). A 6 kWp array needs 9 of them (5.94 kWp over about 24 m²). At 32.2 kg each they are a two-person lift.

About AIKO

AIKO Solar builds every module in its range on ABC (All Back Contact) cells, a structure it developed to move the cell's contacts out of the light path entirely. The design has taken an Intersolar Award and a Red Dot design award, and it is what puts AIKO modules at the top of the mainstream efficiency tables.

Videos

• AIKO ABC Core Technologies
• ABC Module Test - Partial Shading Optimisation Function
• ABC Module Test - High Temperature Restriction Test
• AIKO Fabrik

Datasheets, installation manuals and warranty documents for the AIKO Stellar 3N+ are in the Documents tab below. Buying for a project? Contact our sales team at sales@clearraysolar.com for pallet pricing.
