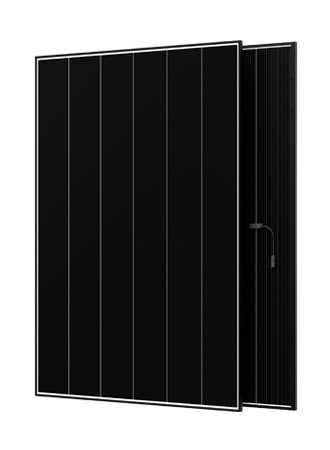

545W Neostar 3P+ N-Type Dual-Glass ABC 60 Cell Black Frame MC4-EVO2A Gen 3

AIKO Neostar 3P+60w: AIKO-A545-MCE60Dw (545 W)

Overview: N-Type ABC (all back contact) dual-glass module with 120 cells (6×20), designed for partial shading optimisation, micro-crack resistance and lower BOS costs.

Electrical characteristics (STC)

• Pmax: 545 W (power tolerance 0 to +3%)
• Voc: 45.70 V
• Vmp: 38.50 V
• Isc: 14.88 A
• Imp: 14.16 A
• Module efficiency: 24.6%
• Temperature coefficient of Pmax: −0.26%/°C

Mechanical specifications

• Dimensions and weight: 1954 × 1134 × 30 mm, 27.1 kg ±3%
• Glass: dual glass, 2.0 + 2.0 mm coated semi-tempered
• Frame: black anodized aluminium
• Junction box: IP68, 3 bypass diodes
• Connector: MC4-EVO2A

Operating and installation limits

• Operating temperature: −40 °C to +70 °C
• Maximum system voltage: DC 1500 V
• Maximum static load: front 5400 Pa, back 2400 Pa
• Fire rating: IEC Class A

Warranty

• Product: 15 years
• Performance: 30-year linear (≤1% first-year degradation, ≤0.35% annually from years 2–30)
• Warranty partner: Munich RE

Certifications: IEC 61215, IEC 61730, CE, ISO 9001, ISO 14001, ISO 45001, BloombergNEF Tier 1
