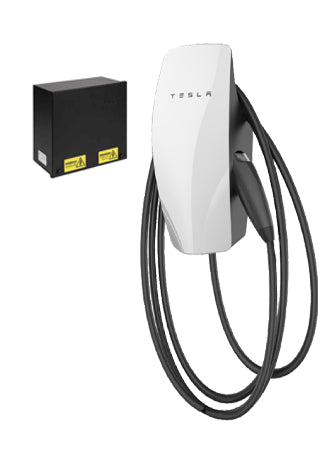

Tesla Gen 3 Wall Connector with Matt:e Pen Fault Protection
Tesla Gen 3 Wall Connector with Matt:e Pen Fault Protection
The Tesla Gen 3 Wall Connector is a 7 kW single phase or 22 kW three phase electric vehicle charge point, supplied with type 2 tethered, 7.3 m cable.
Package Contents
This complete EV charging package includes the following components:
| 1 x TES-WALLCONNECTOR-G3 | Tesla Gen 3 Wall Connector – 7kW / 22kW Type 2 Tethered EV Charger |
| 1 x MATT-SP-EVCP-T-W | Matt:e Single Phase Monitoring & Protection Device with Terminals (White) |
Supplied as a package with a matt:e SP-EVCP-T-W single phase monitoring and protection device. The Tesla Gen 3 Wall Connector has no integrated PEN fault protection, so on a TN-C-S (PME) supply it needs either an earth rod or a protection device of this kind; the matt:e unit removes the groundworks.
Specification
| Rated power | 7 kW single phase or 22 kW three phase |
| Phases | Single or three phase |
| Connector | Type 2 tethered, 7.3 m cable |
| Nominal voltage | 230 V single phase, 230 V or 400 V three phase |
| Current | Maximum 32 A, adjustable by the installer |
| Frequency | 50 / 60 Hz |
| Grounding scheme | TN / TT / IT |
| Residual current detection | Integrated, Type A plus 6 mA DC |
| Means of disconnect | External branch circuit breaker |
| Connectivity | WiFi 2.4 GHz, 802.11 b/g/n |
| Cable length | 7.3 m tethered |
| Dimensions | 345 × 155 × 110 mm |
| Wire box bracket | 250 × 120 × 50 mm |
| Weight including bracket | 6.8 kg |
| Enclosure rating | IP55, indoor and outdoor use |
| Operating temperature | −30 °C to +50 °C |
| Approvals | CE, IEC 61851-1 CB |
| Warranty | 4 years residential use on the Wall Connector, 3 years on the matt:e protection unit |
Installing an EV charge point in the UK
A home charge point is a fixed electrical installation and must be installed by a competent person to BS 7671. Two questions decide most of the job. First, does the unit have integrated PEN fault protection? On a TN-C-S (PME) supply that is what removes the need for an earth rod and the groundworks that come with it. Second, can the existing supply carry another 32 A? That is what load balancing exists to manage — the charger backs off when the house is drawing heavily, instead of taking out the main fuse.
Every charge point sold in Great Britain must also meet the Electric Vehicles (Smart Charge Points) Regulations 2021, which require default off-peak charging hours, a randomised start delay, and measures against unauthorised access.
Additional suggested items
Usually ordered at the same time:
- 6mm2 Five Core Cat5e EV Ultra Cable with SWA Sleeve - 10m — power and Cat5e data in one armoured cable, for the run out to the charger
- Tesla Remote Energy Meter Kit — the current Tesla metering kit, which supersedes the Dynamic Power Management kit
Datasheets, installation manuals and declarations of conformity are in the Documents tab below. See the rest of our ev charging range, or contact our sales team at sales@clearraysolar.com for trade pricing.
