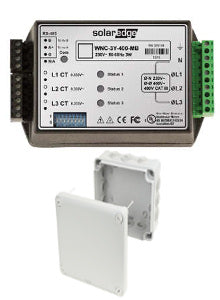

1PH/3PH 230/400V SolarEdge Modbus Meter K2 with enclosure
1PH/3PH 230/400V SolarEdge Modbus Meter K2 with enclosure
1PH/3PH 230/400V SolarEdge Modbus Meter K2 with enclosure is an energy meter from SolarEdge, single phase.
| 1 x SE-WND-3Y400-MB-K2 | 1PH/3PH 230/400V SolarEdge Energy Meter K2 with Modbus Connection | |
| 1 x GW44207 | Gewiss 200mm x 154mm x 79mm PVC Adaptable Box Grey IP56 | |
An energy meter measures what is crossing a point in the installation and reports it to the inverter or monitoring platform over Modbus. It is the component that turns a solar system from something that generates into something that can be controlled: export limitation, time-of-use battery charging and accurate consumption monitoring all depend on a meter reading the right point in the circuit.
Meters are either direct-connected, with the supply passing through the meter itself, or CT-connected, where current transformers do the measuring and the meter reads them. Which one a job needs is decided by the size of the supply and how much of the installation can be taken apart.
Specification
| Manufacturer | SolarEdge |
| Part number | SE-WND-3Y-400-MB-K2-ENC |
| Phases | Single phase |
| Operating voltage, line to neutral / line to line | 184 to 264.5 V / 320 to 460 V AC |
| AC frequency | 50 / 60 Hz |
| Grids supported | Single phase L/N/PE; three phase L1/L2/L3/N/PE |
| Power consumption (typical) | 1.8 W |
| Communication interface | RS485 |
| Response time | ≤ 1 second |
| Default Modbus device ID | 2 |
| RS485 line termination | 120 Ω |
| Accuracy at 25 °C, PF 1 | ±1.0% from 1% to 100% of rated CT current |
| Safety | IEC 61010-1, CAN/CSA-C22.2 No. 61010-1-04 |
| Immunity | EN 61326, EN 61000-4-2/-3/-4/-5/-6/-11 |
