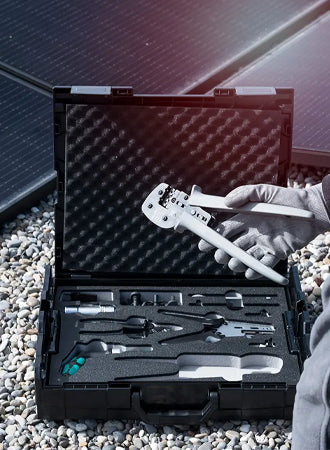

Staubli Tool Case for MC4 and MC4-Evo 2
Staubli Tool Case for MC4 and MC4-Evo 2
- Staubli Tool Case for MC4 and MC4-Evo 2
- Part No: MC4-32.6126
- Tools - Inverter Installation
- Robust plastic case with tools for the assembly of MC4 and MC4-Evo 2.
- Configured for metric cable sizes (mm2 ).
- Configured for open crimp contacts (4 mm², 6 mm², 10 mm²).
- 32.0716 - PV-BVK4 Sealing caps socket, x10
- 32.0717 - PV-SVK4 Sealing caps plug, x10
- 32.6028 - PV-PST Test plug MC4
- 32.6073 - PV-EVO-PST Test plug MC4-Evo 2
- 32.6066 - PV-MS-MC4-EVO Unlocking tool
- 32.6080 - PV-WZ-KS Cable cutter
- 32.0065 - PV-WZ-TORQUE-SET Torque tool
- 32.6020-60100 - PV-CZM-60100 Crimping pliers for MC4, MC4-Evo 2
- 32.6081 - PV-LOC-MC4 Locator for MC4
- 32.6083 - PV-LOC-MC4-Evo 2 Locator for MC4-Evo 2
- 32.6027-410 - PV-AZM-410 Stripping pliers
- 32.6058 - PV-MS-PLS Assembly and unlocking tool

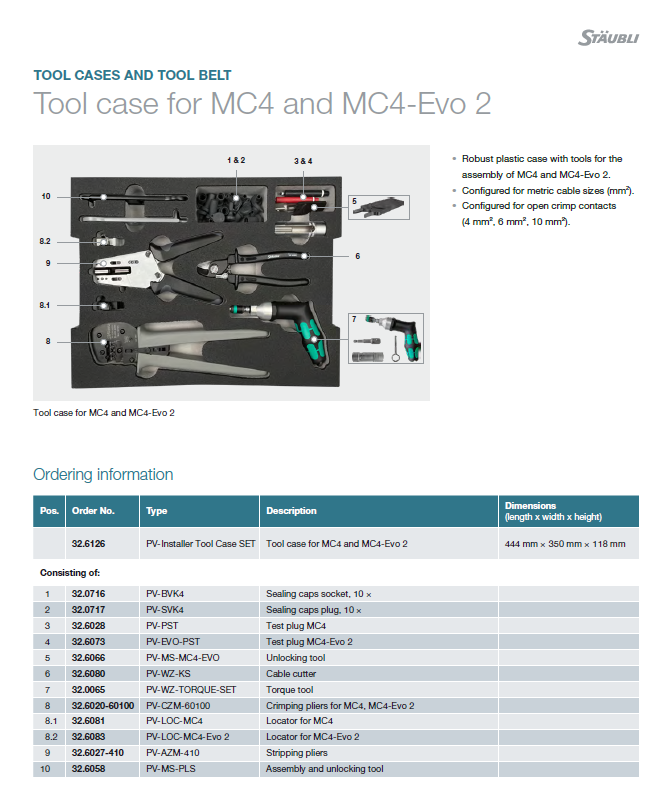

PV-Installer Tool Case Set - Tool case for MC4 and MC4-Evo 2
Consisting of:
Dimensions 444 mm × 350 mm × 118 mm
