JinkoSolar 515W Tiger Neo 2.0 N-Type TOPCon 54 Cell Dual Glass Bifacial Black Frame MC4 Solar Panel
JinkoSolar 515W Tiger Neo 2.0 N-Type TOPCon 54 Cell Dual Glass Bifacial Black Frame MC4 Solar Panel

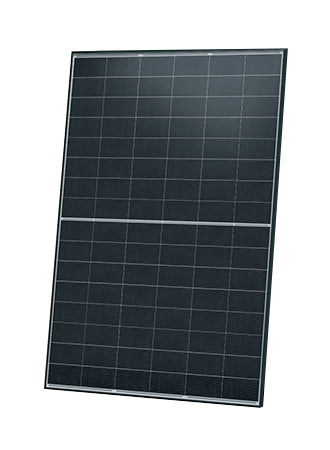

The JinkoSolar Tiger Neo 515 W is an N-type mono-crystalline, bifacial double glass solar panel. It delivers 23.2 % module efficiency from a 1,961 × 1,134 mm frame.
About the JinkoSolar Tiger Neo range
Tiger Neo is JinkoSolar's mainstream n-type range, rated by the manufacturer for lower first-year and annual degradation than p-type modules and for better output in the low, diffuse light that makes up much of the UK's annual irradiance.
At 1,961 × 1,134 mm it is a residential-format module, sized to fit the rafter spans and roof planes of a standard UK house. Being bifacial, it earns most of its extra yield on flat roofs, ground mounts and light-coloured surfaces, where light reaches the back of the module; on a pitched tiled roof the rear-side gain is small.
Why installers specify this panel
- −0.29 %/°C power temperature coefficient — output falls away more slowly as the modules heat up through the middle of the day.
- Bifacial, φVoc 98 % ±5 %, φIsc 80 % ±5 %, φPmax 80 % ±5 % — the rear face adds generation from reflected and diffuse light, which suits flat roofs, ground mounts and light-coloured surfaces.
- All-black appearance — a black anodised frame and dark cells, for domestic roofs where the array has to be discreet.
- 0 to +3 % power tolerance — every module is sorted to meet or beat its 515 W nameplate rating.
Electrical characteristics (STC)
| Rated power (Pmax) | 515 W |
| Module efficiency | 23.2 % |
| Open-circuit voltage (Voc) | 40.89 V |
| Voltage at maximum power (Vmp) | 34.62 V |
| Short-circuit current (Isc) | 15.78 A |
| Current at maximum power (Imp) | 14.88 A |
| Power tolerance | 0 to +3 % |
| Maximum system voltage | DC 1500 V (IEC) |
| Maximum series fuse rating | 35 A |
STC: AM1.5, 1,000 W/m², 25 °C cell temperature.
Mechanical specification
| Cell technology | N-type mono-crystalline |
| Number of cells | 108 (54 × 2) |
| Front glass | 2.0 mm with anti-reflection coating |
| Back glass | 2.0 mm heat-strengthened |
| Frame | Anodised aluminium alloy |
| Dimensions (H × W × D) | 1,961 × 1,134 × 30 mm |
| Weight | 27.0 kg |
| Junction box | IP68 rated |
| Connector | JK03M / JK03M2 (MC4 and MC4-EVO2 on request) |
| Cable | 4.0 mm², (+) 400 mm / (−) 200 mm |
Temperature and load ratings
| Temperature coefficient of Pmax | −0.29 %/°C |
| Temperature coefficient of Voc | −0.25 %/°C |
| Temperature coefficient of Isc | +0.045 %/°C |
| Operating temperature | −40 °C to +70 °C |
| Protection class | Class II |
| Fire type | IEC Class C |
Array sizing
Each panel covers 2.22 m². A 4 kWp array needs 8 of them (4.12 kWp over about 18 m²). A 6 kWp array needs 12 of them (6.18 kWp over about 27 m²). At 27.0 kg each they are a two-person lift.
About JinkoSolar
JinkoSolar is one of the world's largest module manufacturers. Its Tiger Neo range is built on n-type TOPCon cells with the company's HOT 3.0 process, which it rates for lower LID and LeTID degradation, better low-light output and an anti-PID guarantee, with certified salt-mist and ammonia resistance for coastal and agricultural sites.
Datasheets, installation manuals and warranty documents for the JinkoSolar Tiger Neo are in the Documents tab below. Buying for a project? Contact our sales team at sales@clearraysolar.com for pallet pricing.
