Grade B OUT OF STOCK

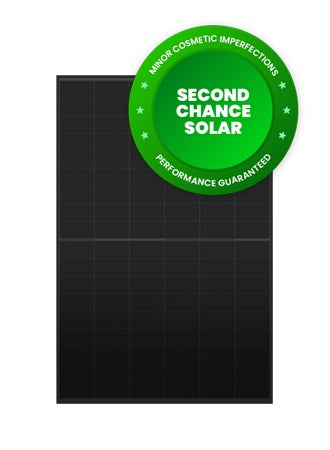

JinkoSolar 430W Tiger Neo N-Type TOPCon 54cell All Black Monocrystalline Solar Panel - Grade B

JKM430N-54HL4R-B-DMG Second Chance Solar
£26.98 ex VAT £32.38 inc VAT
Second Chance Solar — premium performance, minor cosmetic imperfections. Fully tested, fully guaranteed. Better for your wallet and the planet.

How many panels do you need?

Secure Checkout 14-Day Returns Tracked Delivery
Lower DegradationBetter long-term performance
High ReliabilityBuilt for all weather conditions
Greater Energy YieldMore power from your roof
Technical Specifications
Rated Power (Pmax)430 W
Module Efficiency21.52 %
Maximum System Voltage39.16 V
Height1,762 mm
Width1,134 mm
ConnectorJK03M / MC4 / others

JinkoSolar 430W Tiger Neo N-Type TOPCon 54cell All Black Monocrystalline Solar Panel - Grade B

The JinkoSolar Tiger Neo N-Type TOPCon 54cell All Black Monocrystalline, rated 430 W, is offered here as Grade B stock — a solar panel built on N-type TOPCon cells. TOPCon cells add a passivated contact layer behind the silicon, cutting the recombination losses that limit older PERC modules.

What Grade B means

Grade B panels are electrically sound modules that carry minor cosmetic marks — scratches, blemishes or small dents to the frame or glass — picked up in transit or handling. They are sold at a discount to the same module in A-grade condition, which makes them worth considering for outbuildings, workshops, barns, ground mounts, off-grid systems and any array where cost per watt matters more than appearance.

Please read before ordering. All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. ClearRay Solar makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the ClearRay Solar RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.

Panel specification

  • N-type TOPCon cells
  • All-black: black frame and black backsheet

About the Tiger Neo range

Tiger Neo is JinkoSolar's mainstream n-type range, rated by the manufacturer for lower first-year and annual degradation than p-type modules and for better output in the low, diffuse light that makes up much of the UK's annual irradiance.

Manufacturer specification

These are the manufacturer's published figures for this model in new, A-grade condition. Grade B units are sold as seen and carry no performance warranty from ClearRay Solar — see the notice above.

Rated power (Pmax) 430 W
Module efficiency 21.52 %
Open-circuit voltage (Voc) 39.16 V
Voltage at maximum power (Vmp) 32.58 V
Short-circuit current (Isc) 13.65 A
Current at maximum power (Imp) 13.20 A
Cell technology N-type mono-crystalline
Number of cells 108 (54 × 2)
Frame Anodised aluminium alloy
Dimensions (H × W × D) 1,762 × 1,134 × 30 mm
Weight 21.0 kg
Junction box IP68 rated
Connector JK03M / MC4 / others
Maximum system voltage DC 1000 V (IEC)
Temperature coefficient of Pmax −0.29 %/°C

About JinkoSolar

JinkoSolar is one of the world's largest module manufacturers. Its Tiger Neo range is built on n-type TOPCon cells with the company's HOT 3.0 process, which it rates for lower LID and LeTID degradation, better low-light output and an anti-PID guarantee, with certified salt-mist and ammonia resistance for coastal and agricultural sites.

Grade B stock is limited to the quantity held and is not restocked. For availability or pallet pricing, contact our sales team at sales@clearraysolar.com.

N-Type Cell TechnologyLower degradation and higher energy yield
High Efficiency 21.52 %More power from the same roof space
All Black ConstructionEnhanced durability and long service life
JK03M / MC4 / others ConnectorsIndustry standard, ready to install
