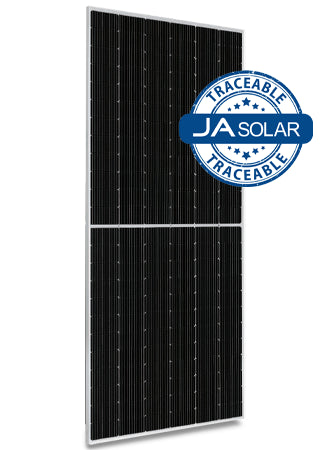

JA Solar 610W N-type TOPCon MBB Traceable Double Glass Bifacial 72 Cell Silver Frame MC4 Solar Panel
JA Solar 610W N-type TOPCon MBB Traceable Double Glass Bifacial 72 Cell Silver Frame MC4 Solar Panel
The JA Solar JAM72D40 LB 610 W is an N-type mono solar panel. It delivers 23.1 % module efficiency from a 2,333 × 1,134 mm frame.
About the JA Solar Deep Blue 4.0 Pro range
Deep Blue 4.0 Pro is JA Solar's n-type platform, using Bycium+ cells with a better temperature coefficient, lower light-induced degradation and improved low-light behaviour than the p-type modules it replaces.
At 2,333 mm tall and 2.65 m² this is a commercial-format module, intended for warehouse and barn roofs, ground mounts and solar farms where the extra length is not a constraint. It is usually too long for a typical domestic roof plane. Being bifacial, it earns most of its extra yield on flat roofs, ground mounts and light-coloured surfaces, where light reaches the back of the module; on a pitched tiled roof the rear-side gain is small.
Why installers specify this panel
- −0.290 %/°C power temperature coefficient — output falls away more slowly as the modules heat up through the middle of the day.
- Bifacial, 80 % ±5 % — the rear face adds generation from reflected and diffuse light, which suits flat roofs, ground mounts and light-coloured surfaces.
- 0 to +3 % power tolerance — every module is sorted to meet or beat its 610 W nameplate rating.
Electrical characteristics (STC)
| Rated power (Pmax) | 610 W |
| Module efficiency | 23.1 % |
| Open-circuit voltage (Voc) | 52.80 V |
| Voltage at maximum power (Vmp) | 44.11 V |
| Short-circuit current (Isc) | 14.57 A |
| Current at maximum power (Imp) | 13.83 A |
| Power tolerance | 0 to +3 % |
| Power with 10% rear irradiance | 659 W |
| Maximum system voltage | DC 1500 V |
| Maximum series fuse rating | 30 A |
STC: AM1.5, 1,000 W/m², 25 °C cell temperature.
Mechanical specification
| Cell technology | N-type mono |
| Number of cells | 144 (6 × 24) |
| Front / back glass | 2.0 mm / 2.0 mm |
| Dimensions (H × W × D) | 2,333 × 1,134 × 30 mm |
| Weight | 32.5 kg |
| Junction box | IP68, 3 bypass diodes |
| Connector | MC4-EVO2A |
| Cable | 4 mm² (IEC), 12 AWG (UL) |
Temperature and load ratings
| Temperature coefficient of Pmax | −0.290 %/°C |
| Temperature coefficient of Voc | −0.250 %/°C |
| Temperature coefficient of Isc | +0.045 %/°C |
| Operating temperature | −40 °C to +85 °C |
| NOCT | 45 ±2 °C |
| Maximum static load | 5,400 Pa front / 2,400 Pa back |
| Fire performance | UL Type 29 / Class C |
Array sizing
Each panel covers 2.65 m². A 4 kWp array needs 7 of them (4.27 kWp over about 19 m²). A 6 kWp array needs 10 of them (6.10 kWp over about 26 m²). At 32.5 kg each they are a two-person lift.
About JA Solar
JA Solar is one of the highest-volume module manufacturers in the industry. Its Deep Blue 4.0 Pro platform uses n-type Bycium+ cells with 16-busbar half-cell interconnection, and carries IEC 61215, IEC 61730, UL 61215 and UL 61730 certification alongside ISO 9001, ISO 14001, ISO 45001 and IEC 62941.
Datasheets, installation manuals and warranty documents for the JA Solar JAM72D40 LB are in the Documents tab below. Buying for a project? Contact our sales team at sales@clearraysolar.com for pallet pricing.
