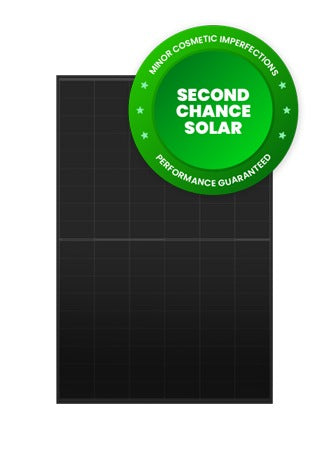

JA Solar 430W N-type Bifacial Double Glass LB All Black with MC4 Connectors Solar Panel - Grade B
JA Solar 430W N-type Bifacial Double Glass LB All Black with MC4 Connectors Solar Panel - Grade B
The JA Solar N-type Bifacial Double Glass LB All Black with MC4 Connectors, rated 430 W, is offered here as Grade B stock — a solar panel built on N-type cells.
What Grade B means
Grade B panels are electrically sound modules that carry minor cosmetic marks — scratches, blemishes or small dents to the frame or glass — picked up in transit or handling. They are sold at a discount to the same module in A-grade condition, which makes them worth considering for outbuildings, workshops, barns, ground mounts, off-grid systems and any array where cost per watt matters more than appearance.
Please read before ordering. All Grade B Item sales are final and sold as seen. Grade B items may have minor cosmetic imperfections (e.g., scratches, blemishes, dents, etc.) that do not affect functionality. ClearRay Solar makes no warranties of any kind, whether express or implied, respecting the performance, condition, suitability, merchantability, or any other quality of such items. Grade B Items are not eligible for returns, refunds, or exchange, and are exempt from the ClearRay Solar RMA policy. Product images are for illustrative purposes only and actual products may vary. Purchaser understands and agrees that assertion or enforcement of any manufacturer provided warranty is Purchaser’s sole responsibility.
Panel specification
- N-type cells
- Bifacial - the rear face generates from reflected light
- Glass-glass construction front and back
- All-black: black frame and black backsheet
Manufacturer specification
These are the manufacturer's published figures for this model in new, A-grade condition. Grade B units are sold as seen and carry no performance warranty from ClearRay Solar — see the notice above.
| Rated power (Pmax) | 430 W |
| Module efficiency | 21.5 % |
| Open-circuit voltage (Voc) | 38.50 V |
| Voltage at maximum power (Vmp) | 32.12 V |
| Short-circuit current (Isc) | 14.14 A |
| Current at maximum power (Imp) | 13.39 A |
| Cell technology | N-type mono, 16BB |
| Number of cells | 108 (6 × 18) |
| Glass | 1.6 mm / 1.6 mm |
| Dimensions (H × W × D) | 1,762 × 1,134 × 30 mm |
| Weight | 22 kg |
| Junction box | IP68, 3 bypass diodes |
| Connector | MC4-EVO2A |
| Maximum system voltage | DC 1500 V |
| Temperature coefficient of Pmax | −0.300 %/°C |
About JA Solar
JA Solar is one of the highest-volume module manufacturers in the industry. Its Deep Blue 4.0 Pro platform uses n-type Bycium+ cells with 16-busbar half-cell interconnection, and carries IEC 61215, IEC 61730, UL 61215 and UL 61730 certification alongside ISO 9001, ISO 14001, ISO 45001 and IEC 62941.
Grade B stock is limited to the quantity held and is not restocked. For availability or pallet pricing, contact our sales team at sales@clearraysolar.com.
