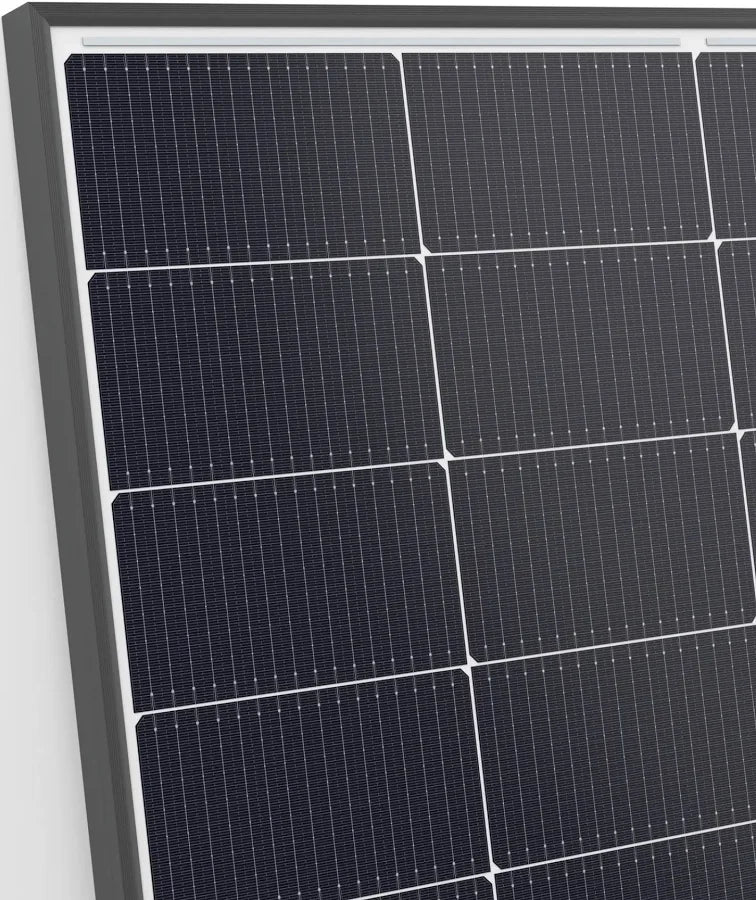

12 x JA Solar 540W N-Type TOPCon Traceable Low Carbon Double Glass Bifacial Black Frame Solar Panel
Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2
Fox ESS EP12 11.52kWh 384V Battery with Heating Element
Battery Hazard Label Pack
32 x Solar Roof Tegalit Anchor for Plain tile (Screws are included)
8 x Clenergy SolarRoof Pro Solar PV Mounting Rail 4600mm
28 x Clenergy Universal Solar Panel Mid/End Clamp 30–46mm Black
4 x Clenergy SolarRoof Pro Solar PV Mounting Rail Connector
8 x Clenergy Pro Rail Cap Black.
Projoy DC Isolator 32A 4pole 2string
IMO Stag AC Isolator 3 Pole 20 Amp
Emlite 1-ph Bi-Directional generation meter 100A (1000 pulse/kWh) incl. Cover
Cableworld 4mm2 single-core DC cable 50m - Black
4mm2 single-core 50m - Red
24 x Staubli MC4 Female Connector - Single - 6 mm2-32.0014P0001-UR
24 x Staubli MC4 Male Connector - Single - 6 mm2-32.0015P0001-UR
PV on Roof and Hazard Labels Pack
12 x JA Solar 540W N-Type TOPCon Traceable Low Carbon Double Glass Bifacial Black Frame Solar Panel
ClearRay Solar 28 IN STOCK

Fox ESS 5kW Solar Kit with 11.5kWh Battery and 12 x 540W Solar Panels

£4,090.34 ex VAT

How many panels do you need?

Secure Checkout 14-Day Returns Tracked Delivery
Lower DegradationBetter long-term performance
High ReliabilityBuilt for all weather conditions
Greater Energy YieldMore power from your roof

ClearRay Solar Fox ESS 5kW Solar Kit with 11.5kWh Battery and 12 x 540W Solar Panels

A complete 6.48 kWp solar and 11.5 kWh battery kit for a single-phase home on a plain-tile roof, built around the Fox ESS Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2. Every part from the roof to the consumer unit is listed below, checked by our configurator.

6.48 kWpSolar array
5 kWHybrid inverter
11.5 kWhBattery storage
~6,200 kWhEstimated yearly yield
12Panels, 2 strings
294 VString voltage, under 600 V
G99DNO approval before fitting
1 phaseSingle-phase supply

What's in the kit

Solar panels 6.48 kWp

Inverter 5 kW hybrid

Battery storage 11.5 kWh

Roof mounting Clenergy, plain-tile

Electrical and protection

  • The AC cable from the inverter to the AC isolator, generation meter and consumer unit (we don't sell general AC cable): 3-core, sized by your electrician for the ~22 A output and the run length.
  • Installation, scaffolding and the G99 application

Design checks

  • String voltage 294 V on the coldest day, under the inverter's 600 V limit
  • 6.48 kWp on a 5 kW inverter, a 1.30 ratio, inside the tool's limits
  • Battery approved by the tool for this inverter
  • One mounting brand across the roof, as MCS 012 requires
  • Over 16 A per phase, so a G99 application goes in before fitting
  • Every run covered from the roof to the consumer unit
Different roof, more panels or a bigger battery?Open this kit in the configurator and change anything.
Customise this kit
MCS ApprovedEligible for UK grants and installations

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
Inverter: Data Sheet FOX H1/AC1 G2 3-6kW EN Inverter: G99 Certificate Inverter: Installation Manual H1/AC1 G2 Range EN Inverter: Installation Manual WiFi Stick User Manual - EN
