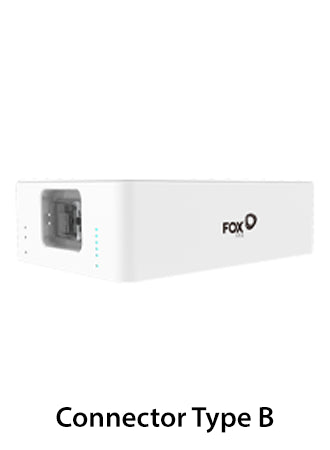

Fox ECS 2.88kWh HV Battery (Master) V2.0 Connector B

Fox ESS

Fox ECS 2.88kWh HV Battery (Master) V2.0 Connector B

SKU FE-HV-ECM-2900 21 IN STOCK
£727.13 Exc. VAT
Tracked Delivery Order before 2pm for next-day delivery
Lithium Ion
Battery Type
2880 Wh
Nominal Energy
90.00 %
Depth of Discharge
52 V
Battery Voltage
1440 W
Cont. Discharge
2880 W
Max Discharge (5m)
3000 W
Surge Discharge (15s)
2880 W
Max Charge (5m)
Quantity
Total
£727.13
14-Day Returns Secure Checkout
Why Choose ClearRay Solar?
  • UK stock — no drop-ship delays
  • MCS-certified products
  • Industry-lowest trade rates
Need Help Choosing?
  • Free system design support
  • Match inverters to panels with our online tool
  • G98 / G99 compliance flagging
  • Real-time stock availability
Open System builder →
Trade-Ready Supply
  • Next-day delivery on stocked items
  • Pallet quantities available — request a quote
  • Dedicated account support
Fox ECS 2.88kWh HV Battery (Master) V2.0 Connector B
Part No: FE-HV-ECM-2900
Storage Systems - Li-ion Battery Pack

Fox ECS - High Voltage Battery (Master)

ECM2900

ECS is a high-performance, scalable battery storage system. The modular design allows for maximum flexibility, making it suitable for a broad range of storage applications. Additional batteries can be installed in series, allowing for a maximum storage capacity of 20.16 kWh. Installation is easy, with a plug and play solution that can save valuable time for installers.

  • 2.88kWh Capacity
  • Scalable to 20.16kWh
  • 90% Depth of Discharge
  • Wide Temperature Tolerence
  • Easy Installation
  • CAN/RS485 Communication
  • High Voltage

Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)

If you are adding battery modules to a pre-existing Energy Cube stack, it’s important that the new batteries are compatible with your original battery modules. Please contact your Technical person via the portal and provide a photograph of the original battery stack to help us determine correct compatibility

IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector type A and Connector type B variations. This is Connector type B variation.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Product Documents & Certificates
CE Declaration of Conformity (Attestation of Conformity) ECS 2.9/4.1/4.3 Data Sheet FOX ECS 2900 DE Data Sheet FOX ECS 2900 EN Data Sheet Safety ECM2900 Installation Manual QIG EN Safety Transport & Handling Documentation ECM2900 Safety Transport & Handling Documentation ECM2900 Dangerous Goods Safety Transport & Handling Documentation FE- HV - MSDS Safety Transport & Handling Documentation Test Summary ECM2900 User Manual Fox ESS ECS Batteries Warranty Fox ESS Battery V4.5 White Paper FOX ESS Cyber Security White Paper Why Fox?
