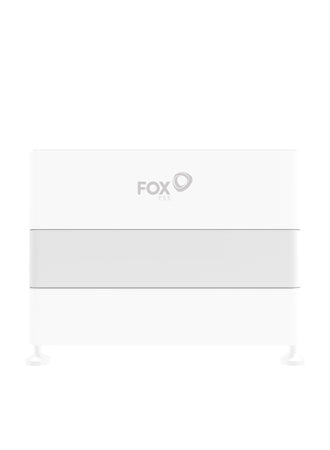

Fox ESS CQ7 HV 7.02kWh Slave
- Fox ESS CQ7 HV 7.02kWh Slave
- Part No: FE-CQ7-S
- Storage Systems - Li-ion Battery Pack

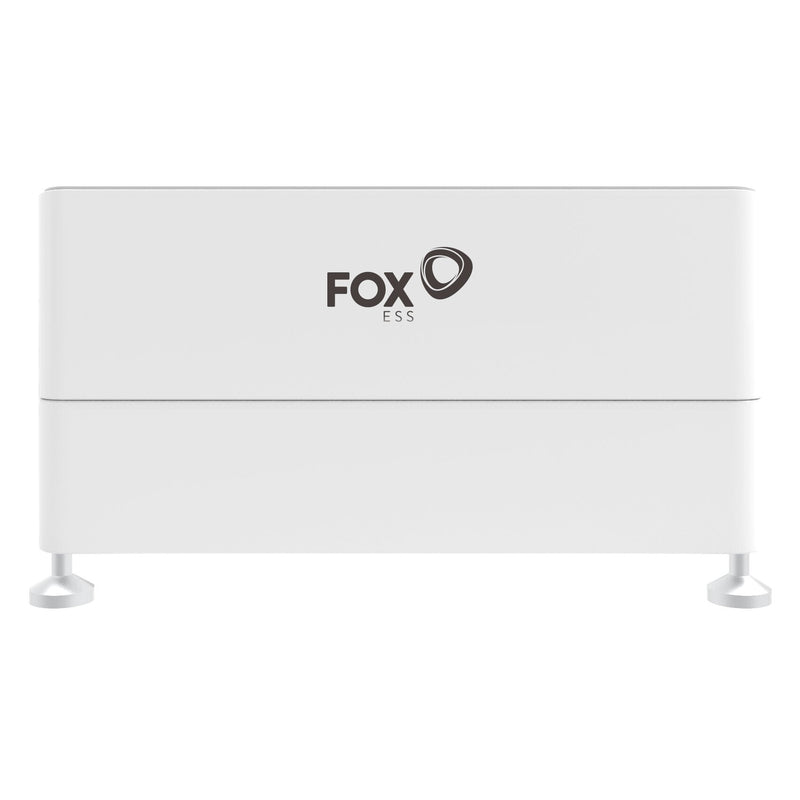

Fox ESS CQ7 High Voltage Battery Storage System
The Fox ESS CQ7 is a high-performance, scalable high-voltage battery storage solution designed for residential and commercial energy storage applications. Built using safe and reliable LiFePO4 (LFP) battery technology, the CQ7 combines high efficiency, flexible expansion capability, and simple plug-and-play installation to help maximise self-consumption and energy independence.
With a starting capacity of 14.04kWh, the modular system can be expanded up to 98.28kWh by connecting up to 14 modules in series, making it suitable for a wide range of project sizes and future energy demands. The system offers 90% depth of discharge (DoD) and over 95% round-trip efficiency, ensuring maximum usable energy and excellent performance.
Designed for both indoor and outdoor installations, the CQ7 features an IP65-rated enclosure, natural convection cooling, integrated fire protection functionality, and CAN communication for seamless integration with compatible energy management systems. Its wide operating temperature range and optional battery warming function help deliver reliable performance in demanding environments.
Key Features
Modular high-voltage battery storage system
Expandable from 14.04kWh to 98.28kWh
Safe and reliable LiFePO4 battery chemistry
90% depth of discharge for greater usable capacity
>95% round-trip efficiency
Plug-and-play installation for faster deployment
Supports up to 14 battery modules in series
Integrated fire protection function
IP65 rated for indoor and outdoor use
Wide operating temperature range with optional self-heating functionality
CAN communication interface
Certified to IEC 62619 and UN38.3 standards
Electrical
| Battery Type | Lithium Ion |
|---|---|
| Nominal Energy | 11520 Wh |
| Depth of Discharge | 90.00 % |
| Battery Voltage | 384 V |
| Continuous Discharge Rate | 5760 W |
| Max Discharge Rate (5 min) | 11520 W |
| Surge Discharge Rate (15 sec) | 24960 W |
| Max Charge Rate (5 min) | 11520 W |
- Fox Ess CQ7
- Fox Ess CQ7-M - EN
- Fox Ess CQ7-S - EN
- Data Sheet Fox Ess CQ7
- Product Compatibility Fox Ess UK 2026
- Safety Transport & Handling Documentation SDS Fox Ess CQ7-M - EN
- Safety Transport & Handling Documentation SDS Fox Ess CQ7-S - EN
- User Manual Fox Ess CQ7
- Warranty Fox ESS Battery V4.5
- Warranty Fox Ess V3.1 - DE (German)
- Warranty Fox Ess V3.1 - EN
